Newest Double Shaft Shredder Machine Blades Catalog

When choosing the specifications of a double-shaft shredder machine blade, you need to choose the blade according to the size of the main shaft of the shredder, the material to be shredded, and confirm the specific dimensions, such as the diameter, thickness, bore, and tooth spacing.

1. How to Choose Double Shaft Shredder Machine Blade Sizes

200 type shredder common blade size: 200 mm- 220 mm for small material crushing, plastic products.

300 type shredder common blade size: 300 mm- 320 mm. Suitable for household waste, paper, and film processing.

400 type shredder common blade size: 400 mm- 420 m.m. Suitable for plastic drums, wood, and woven bag crushing.

500 type shredder common blade size: 500 mm- 520 mm. Suitable for tyres, metal scrap, and construction waste disposal.

600 type shredder common blade size: 600 mm- 620 mm. Suitable for solid waste recycling, ore pre-processing.

Shredding plastic film or paper: Select the reference blade diameter (200-300mm), thickness (20-25mm), and tooth pitch (30-40mm).

Wood or plastic drums: Select the reference blade diameter (300-400mm), thickness (25-35mm), and tooth spacing (40-50mm)

Scrap tyres or cables: Select reference blade diameter (400-500m,m), thickness (35-45mm), pitch (50-60mm)

Metal scrap or construction waste: Select the reference blade diameter (500-600mm), thickness (45-55mm) tooth pitch (60-80mm).

2. Thickness Reference For Each Type of Blade

Small blade (200-300 type): 20-30mm, suitable for low-strength materials.

Medium blade (400-500 type): 30-45mm, suitable for medium hardness materials (such as wood, plastic).

Large blade (600 type and above): 45-55mm, for high wear-resistant materials (like tyres, metals).

Shaft sizes

The total width of a single set of blades (multiple stacked) is usually 300-1200mm.

Small machines: 300-500mm total width, suitable for 1-5 tonnes per hour.

Large machines: 800-1200mm total width, suitable for over 10 tonnes per hour.

Pitch and number of teeth

Pitch: Usually 30-80mm, and the harder the material, the bigger the pitch. When dealing with metal, the pitch is 50-80mm to prevent jamming.

Number of teeth: 200mm diameter blade about 8-12 teeth, 600mm diameter blade about 16-24 teeth, the more teeth, the higher shear precision.

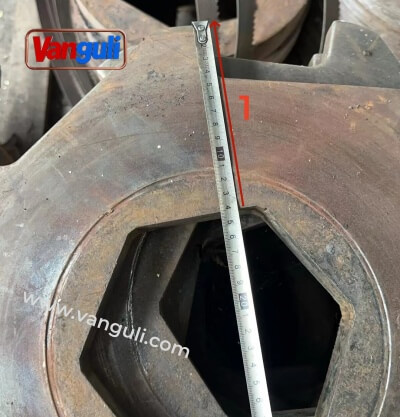

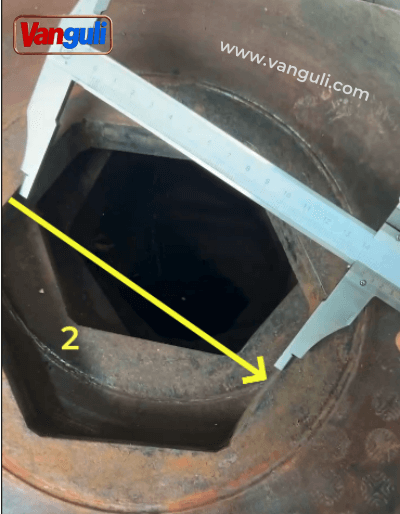

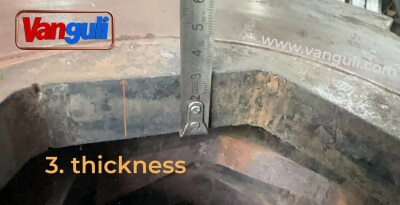

3. How to Measure Your Double Shaft Shredder Machine Blade Sizes

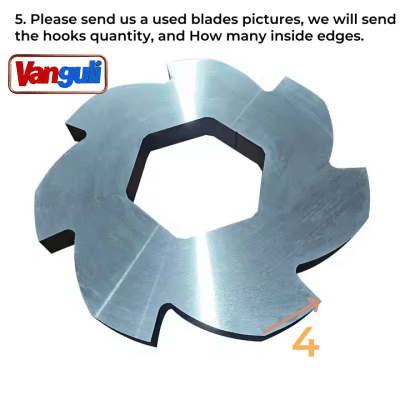

If your machine supplier sends you the blades drawings, that's best. We can make the blades according to your drawings directly. But if you don't have drawings, you can measure it by below steps.  Please send us the picture of the used blades, we will send the quantity of hooks, and how many inside edges.
