Plastic Grinder Machines Rubber Grinding Machines
- PVC plastic grinding machine.
- TPE rubber grinder.
- PET bottles grinding machine.
Description
Vanguli plastic grinder machines can adapt to a variety of plastic types, both hard plastic and soft plastics, such as plastic drums, PVC pipe, plastic bags, and film. Or composite plastics, such as plastic packaging, foam, can be matched with different knife types and speeds to achieve effective crushing, without the need for frequent replacement of equipment.
1. Parameters of Plastic Grinder Machines
| Model | 180 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| Crushing Capacity( kg /h) | 50-100 | 150-200 | 200-300 | 250-450 | 400-700 | 450-800 | 500-1000 | 650-1300 | 750-1500 |
| Power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Power(hp) | 3 | 5.5 | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Rotary Blade | 9 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 |
| Fixed Blade | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Rotation Diameter(mm) | 148 | 225 | 240 | 250 | 310 | 350 | 400 | 400 | 400 |
| Screen(mm) | 6 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 |
| Shaft Speed (r/min) | 520 | 617 | 617 | 650 | 627 | 576 | 480 | 480 | 480 |
| Feed Port Size (mm) | 150*200 | 200*250 | 220*320 | 250*420 | 300*520 | 330*620 | 420*720 | 500*820 | 550*1020 |
| Bin Size (mm) | 440*290*210 | 715*300*230 | 800*370*230 | 870*470*260 | 1100*620*280 | 1050*710*330 | / | / | / |

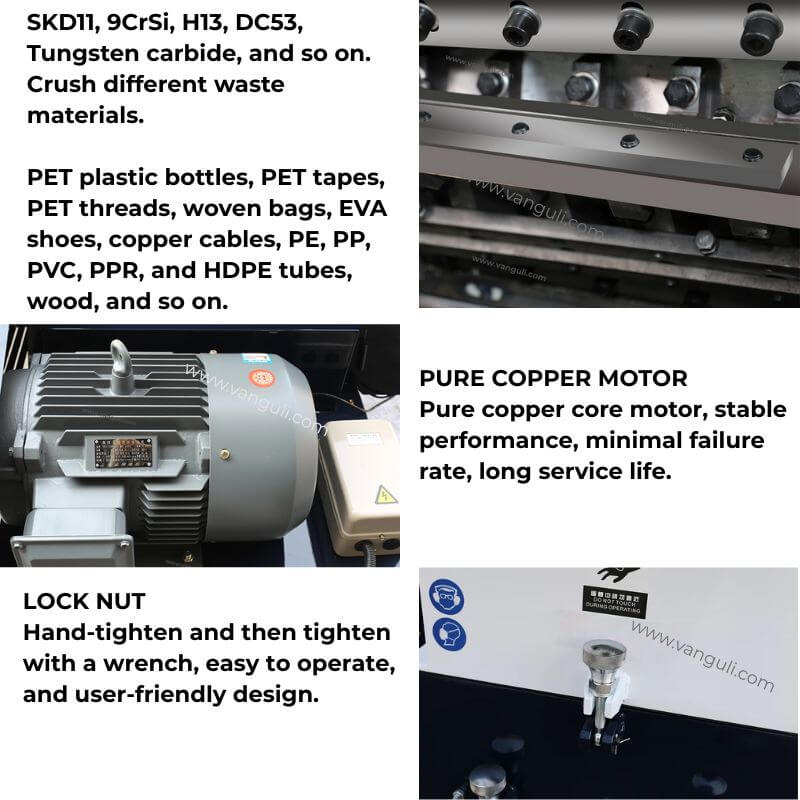

2. Introduction of Plastic Grinder Machines

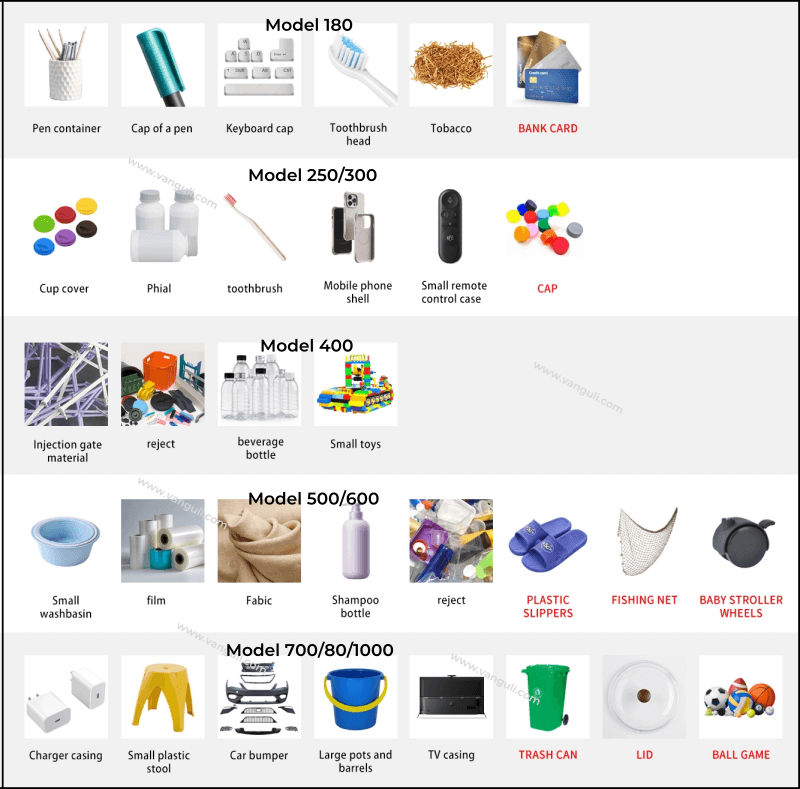

3. Application of Plastic Grinder Machines

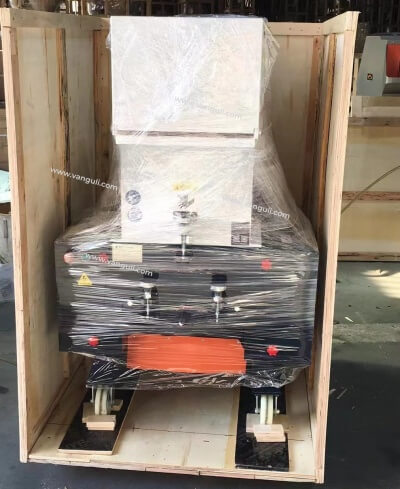

4. Shipping And Packaging of Plastic Grinder Machines
