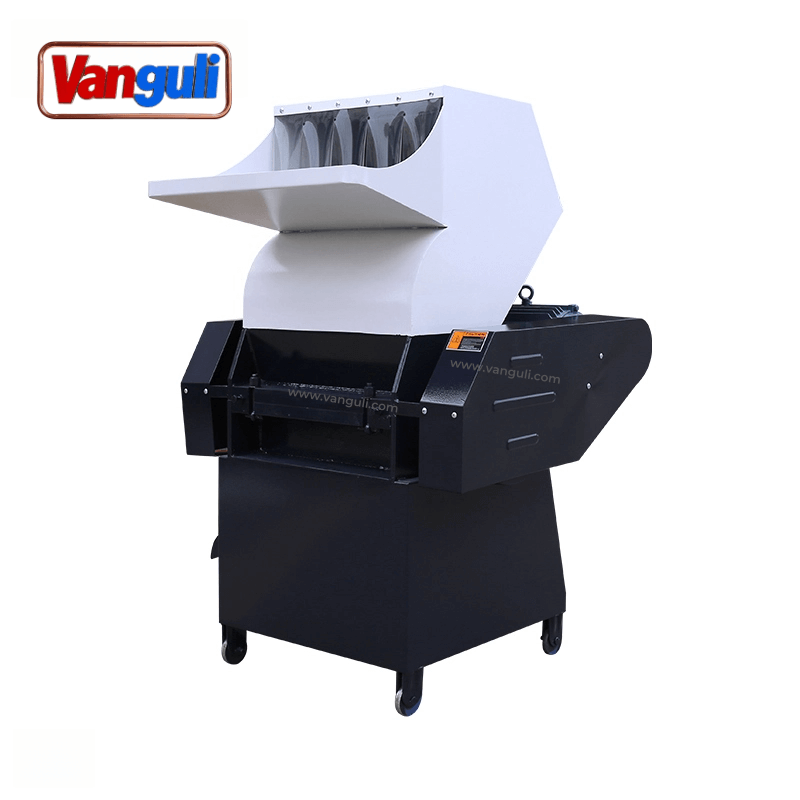

Plastic Film Crusher Plastic Bags
- Plastic film crusher.
- Paper crusher.
- Small crusher.
Description
The plastic film crusher is specially designed for plastic film materials, such as polyethylene PE film, polypropylene PP film, plastic packaging bags, greenhouse film, winding film, etc., designed for the crushing equipment because the plastic film has the characteristics of being light, thin, strong, tough, and easy to wind.

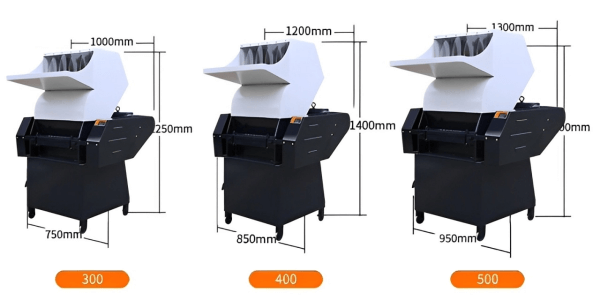

1. Parameters of The Plastic Film Crusher
| Model | 300 | 400 | 500 |
| Main Shaft Diameter(mm) | 50 | 60 | 60 |
| Rotary Blade | 3 | 3 | 3 |
| Rotary Blade Length(mm) | 300 | 400 | 500 |
| Fixed Blade | 2 | 2 | 2 |
| Fixed Blade Length(mm) | 300 | 400 | 500 |
| Crushing Ability(kg/h) | 180-250 | 250-350 | 300-450 |
| Mesh Diameter(mm) | 8 | 10 | 10 |
| Cutter Shaft Speed(r/min) | 550 | 500 | 550 |
| Power(kw) | 4 | 5.5 | 7.5 |
| Feed Port Size(mm) | 350*200 | 520*270 | 620*270 |
| Weight (kg) | 180 | 380 | 430 |
2. Introduction of The Plastic Film Crusher
