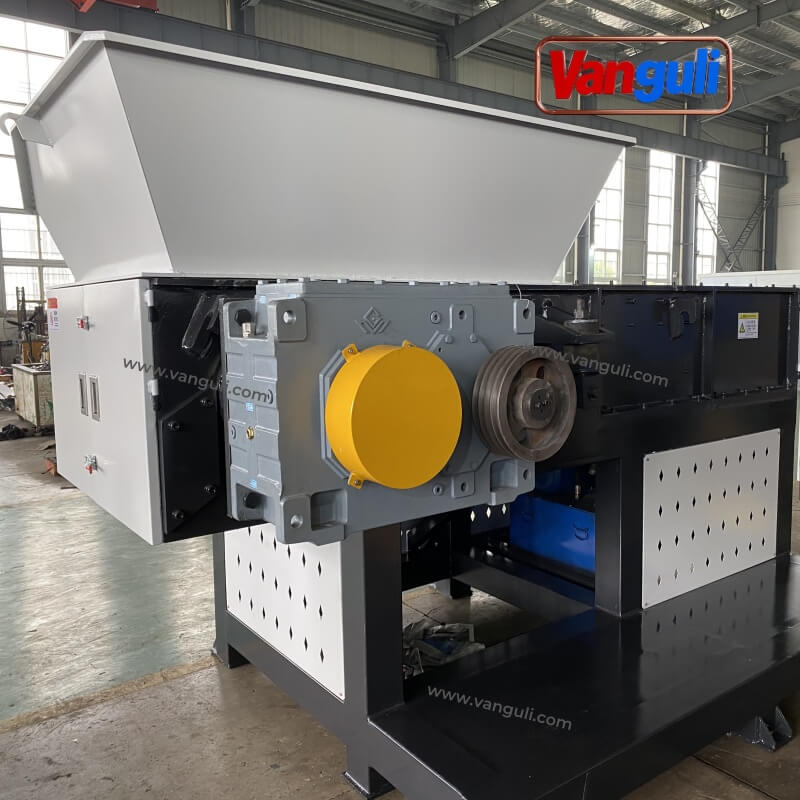

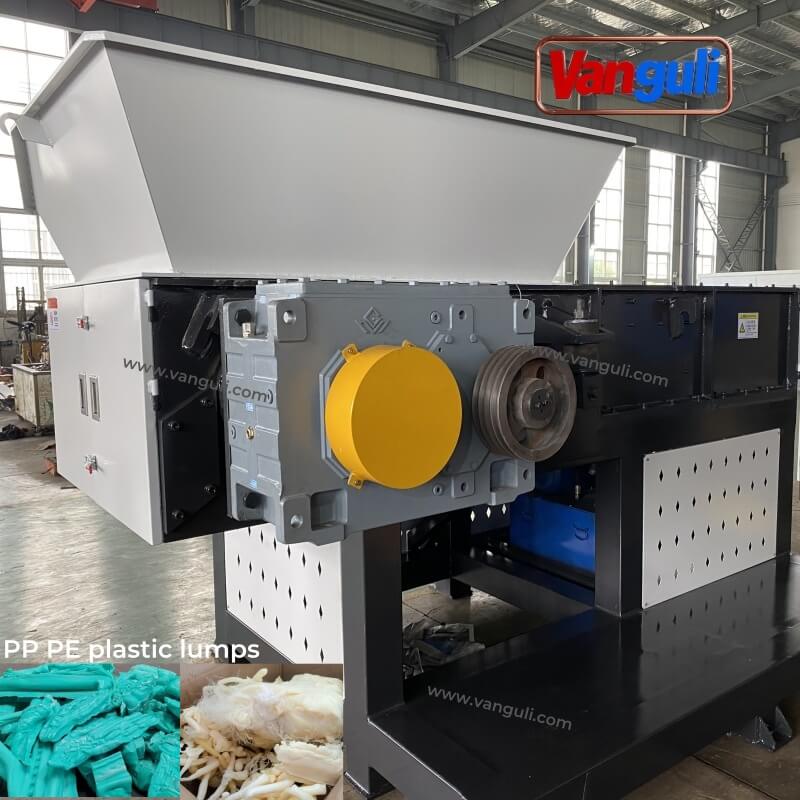

Plastic Block Shredder Shredding Plastic Lumps

1

Machine chassis

The base frame of the rack is made of 120* 80* 5mm steel, and the bottom fixed base plate.

The main body of the chassis is made of a 24mm steel plate with 4 lifting ears. The whole is firm, and the chassis is connected with the base frame by welding.

Feeding hopper size: 1400* 1000mm, the hopper is fixed.

2

Hydraulic system

The hydraulic pump adopts 4KW oil pressure.

Hydraulic cylinder model is 80*1000, quantity: 1pc

3

Motor

37kw 4-class  motor. (Can be changed on request)

4

Reducer

H205HH (can be changed upon request)

5

Shaft

Adopted 45# steel by forging, heat treatment, turning, and fine milling.

The whole is strong and wear-resistant.

Shaft rotating outer diameter is Φ360mm. (Can be changed on request)

Shaft effective length: 800m.

Rotating speed: 70 rpm. (Can be changed upon request)

6

Blade specifications and materials

Material D2 (can be changed upon request).

Size of movable knife: 50*50*25mm, total 44 pcs. (Can be changed on request.)

Fixed knife size: 400*120*40mm, total 1pc. (Can be changed on request) .

7

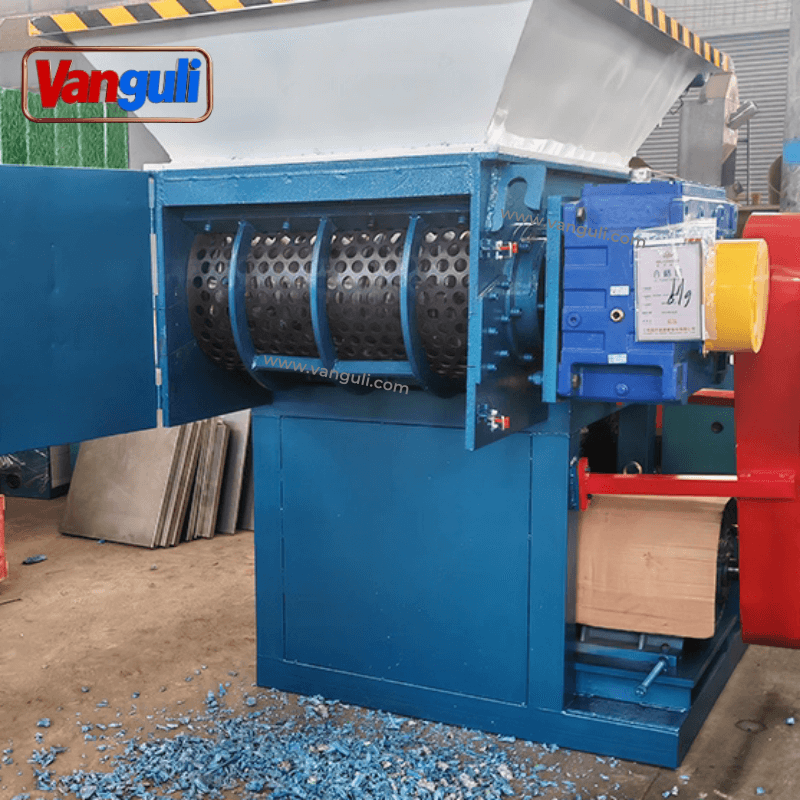

Sieve mesh

Made of 8mm steel plate.

The hole diameter of the screen is 50mm (can be changed on request).

8

Electrical cabinet

PLC control, when the motor is overloaded, it will stop automatically, and the spindle will be reversed to protect the motor.

9

Machine dimensions (length*width*height )

2700* 1600*1850mm

10

Machine weight

Around 3300kg

11

Color

Body: Blue (can be changed on request)

Hopper: white (can be changed on request)
