Elastic Soft Rubber Crusher Machines
- Rubber crusher machines.
- TPE glove crushing machine.
- Rubber plates crusher.
Description
Rubber crusher machines can recycle TPE gloves, rubber plates, tennis balls, and so on. In the production process of rubber products, the rubber crusher can be used to crush and recycle the edges, substandard products, etc., and put them back into production, improve the utilisation rate of rubber materials and reduce the production cost. Below are crushing effect testing videos.
1. Parameters of Rubber Crusher Machines

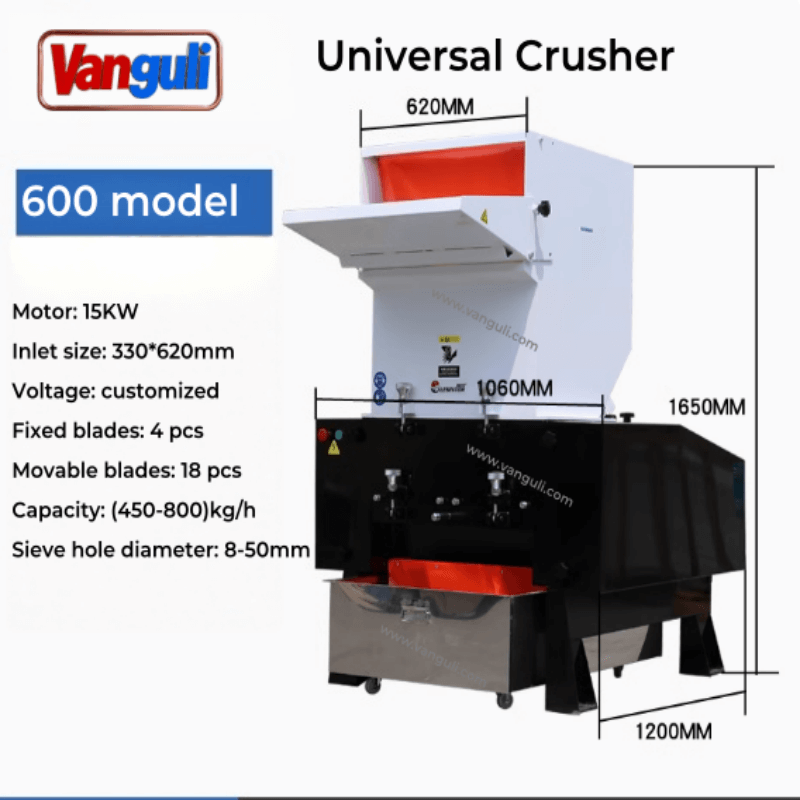

| Model | 180 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| Crushing Capacity( kg /h) | 50-100 | 150-200 | 200-300 | 250-450 | 400-700 | 450-800 | 500-1000 | 650-1300 | 750-1500 |
| Power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Power(hp) | 3 | 5.5 | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Rotary Blade | 9 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 |
| Fixed Blade | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Rotation Diameter(mm) | 148 | 225 | 240 | 250 | 310 | 350 | 400 | 400 | 400 |
| Screen(mm) | 6 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 |
| Shaft Speed (r/min) | 520 | 617 | 617 | 650 | 627 | 576 | 480 | 480 | 480 |
| Feed Port Size (mm) | 150*200 | 200*250 | 220*320 | 250*420 | 300*520 | 330*620 | 420*720 | 500*820 | 550*1020 |
| Bin Size (mm) | 440*290*210 | 715*300*230 | 800*370*230 | 870*470*260 | 1100*620*280 | 1050*710*330 | / | / | / |

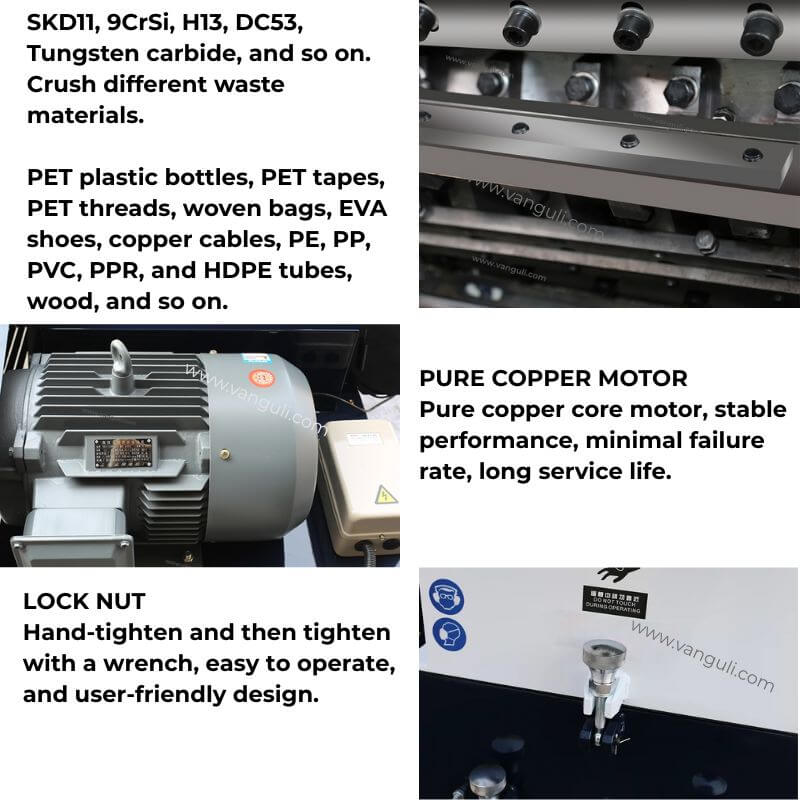

2. Introduction of Rubber Crusher Machines
