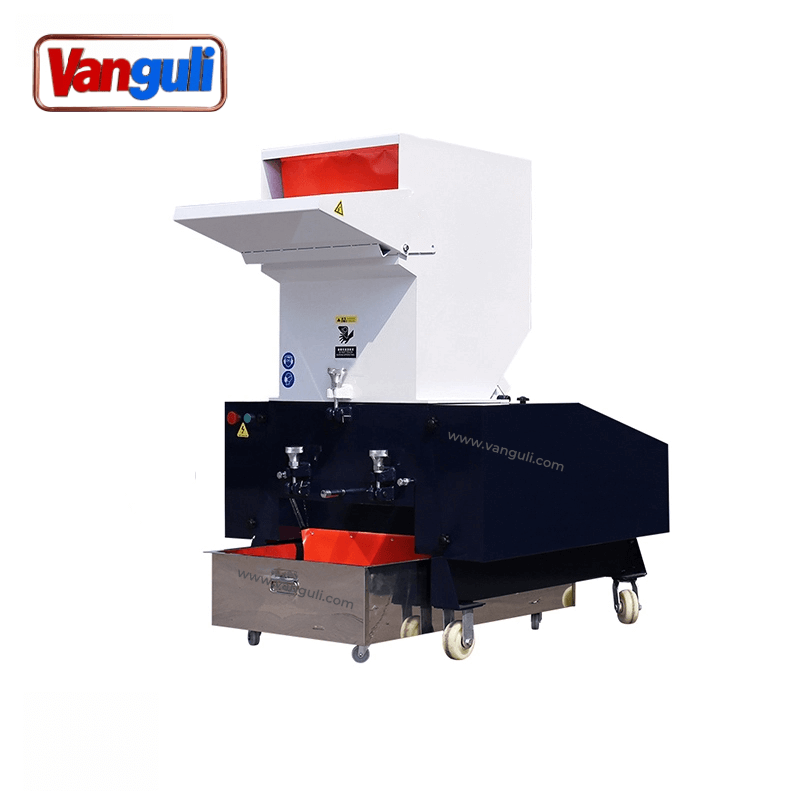

Plastic Bottle Crusher Machine Pelletizer Machine
- PET plastic bottles crusher.
- PET tapes recycling machine.
- Woven bags recycling.
Description
The plastic bottle crusher machine is very hot-selling. Our newest tungsten carbide blade material can increase output by 2 to 3 times that SKD11 blade material. We also have real cases of PET plastic bottles, PET tapes, PET threads, woven bags, EVA shoes, PE, PP, PVC, PPR, and HDPE tubes.
1. Parameters of The Crusher Machines

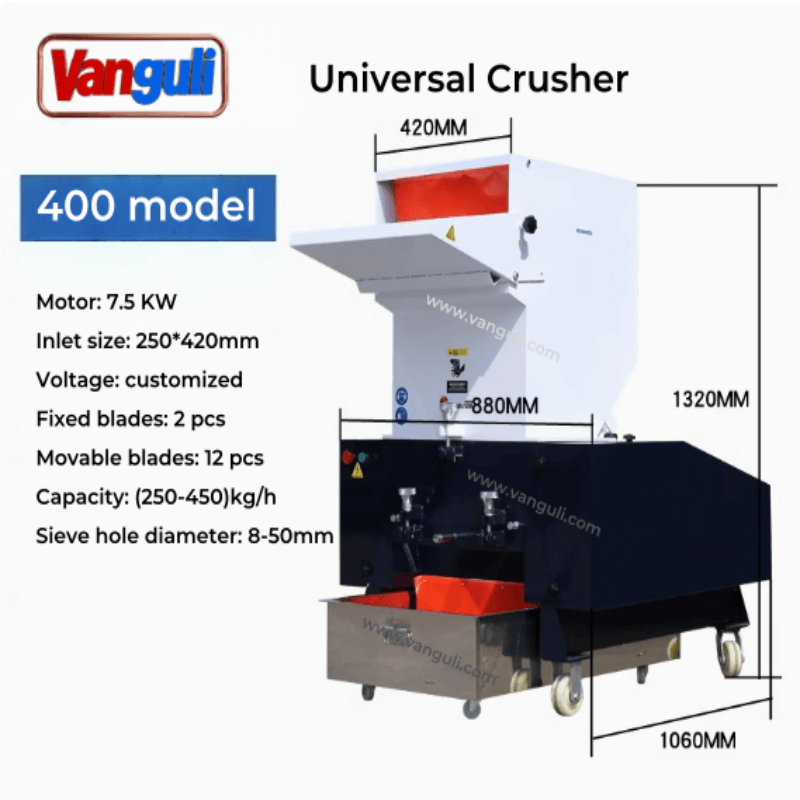

| Model | 180 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| Crushing Capacity( kg /h) | 50-100 | 150-200 | 200-300 | 250-450 | 400-700 | 450-800 | 500-1000 | 650-1300 | 750-1500 |
| Power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Power(hp) | 3 | 5.5 | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Rotary Blade | 9 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 |
| Fixed Blade | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Rotation Diameter(mm) | 148 | 225 | 240 | 250 | 310 | 350 | 400 | 400 | 400 |
| Screen(mm) | 6 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 |
| Shaft Speed (r/min) | 520 | 617 | 617 | 650 | 627 | 576 | 480 | 480 | 480 |
| Feed Port Size (mm) | 150*200 | 200*250 | 220*320 | 250*420 | 300*520 | 330*620 | 420*720 | 500*820 | 550*1020 |
| Bin Size (mm) | 440*290*210 | 715*300*230 | 800*370*230 | 870*470*260 | 1100*620*280 | 1050*710*330 | / | / | / |

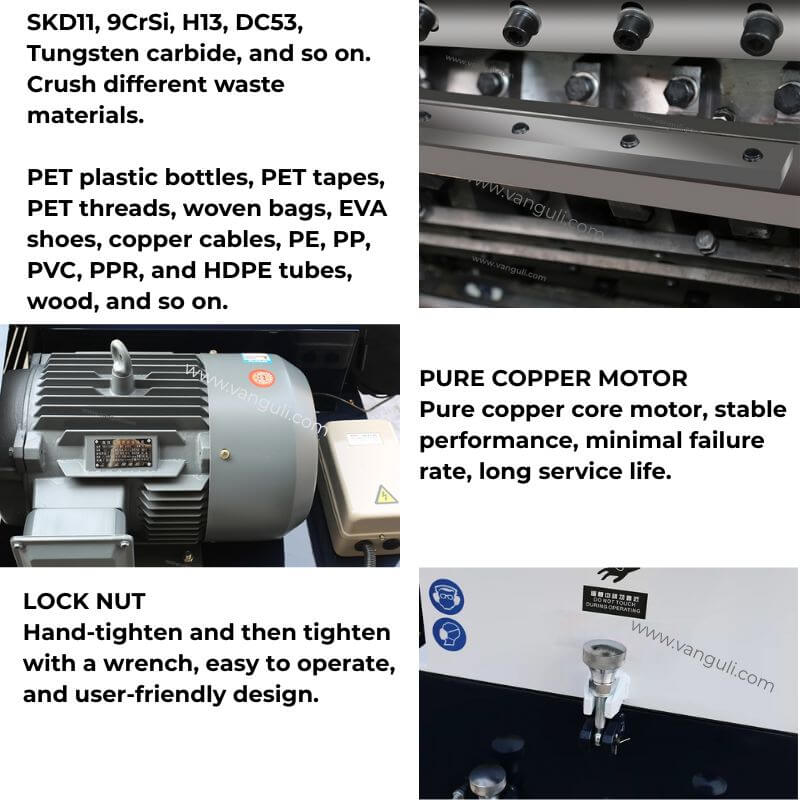

2. Details of Plastic Bottle Crusher Machine
3. Application of Crusher Machines
